LHD Clutch Line

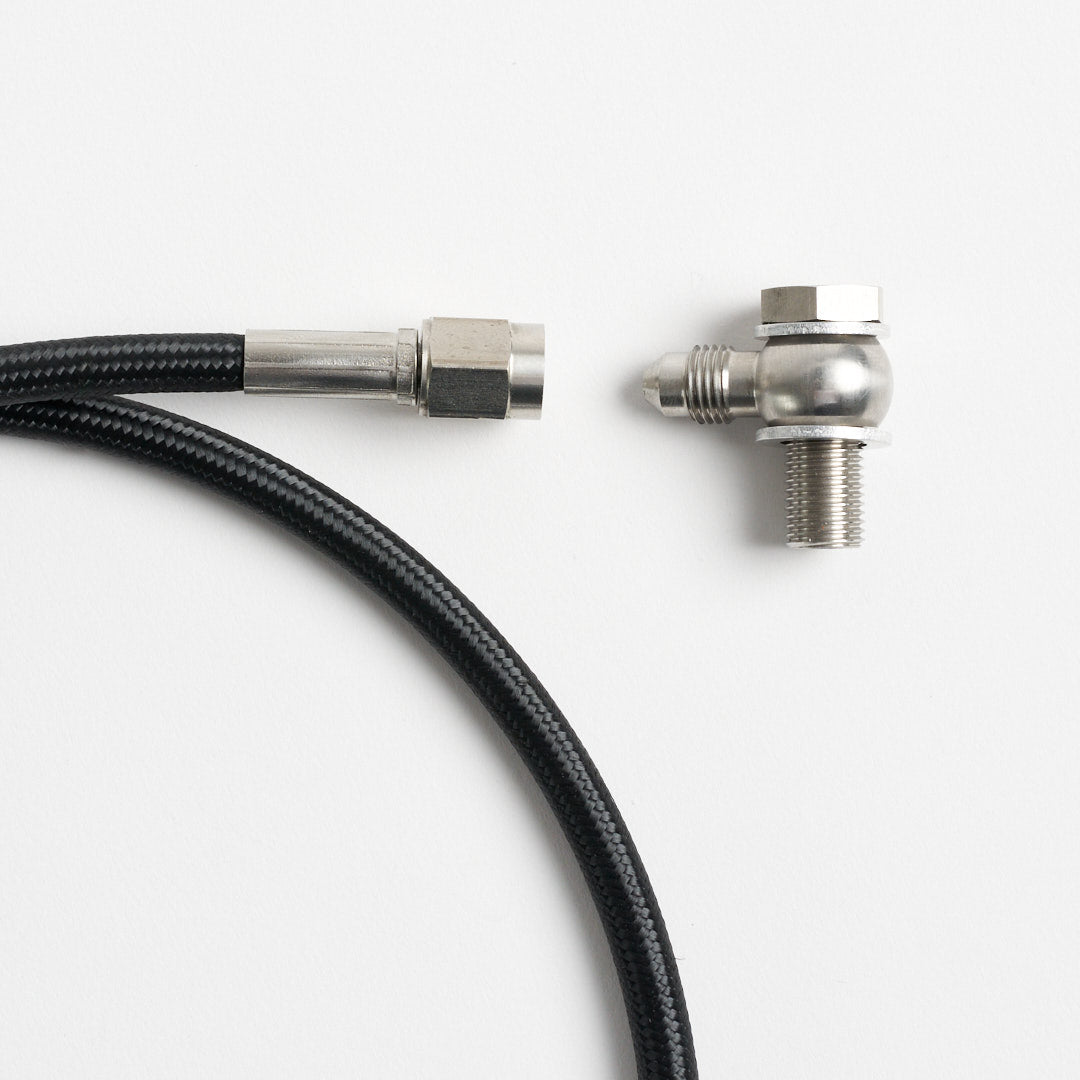

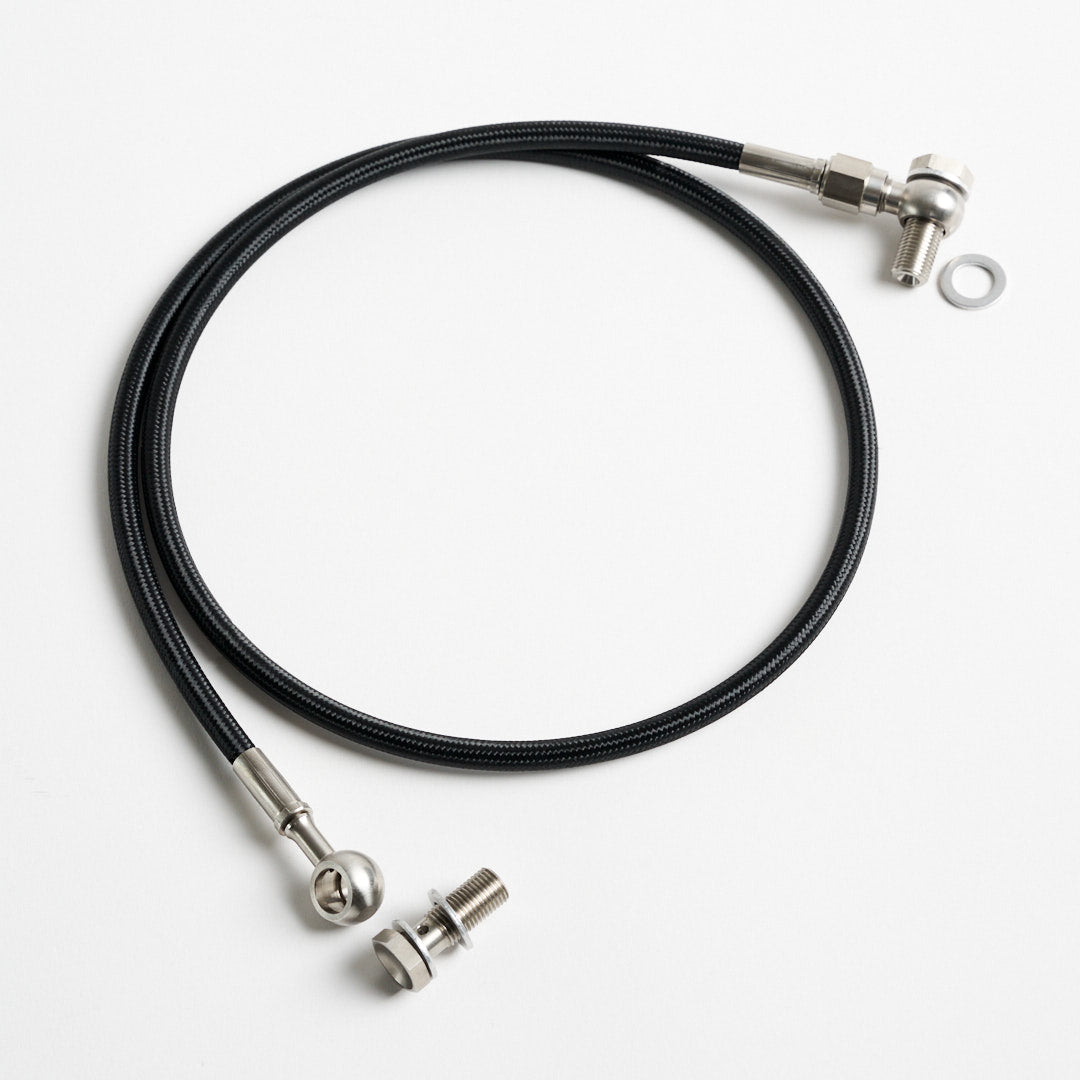

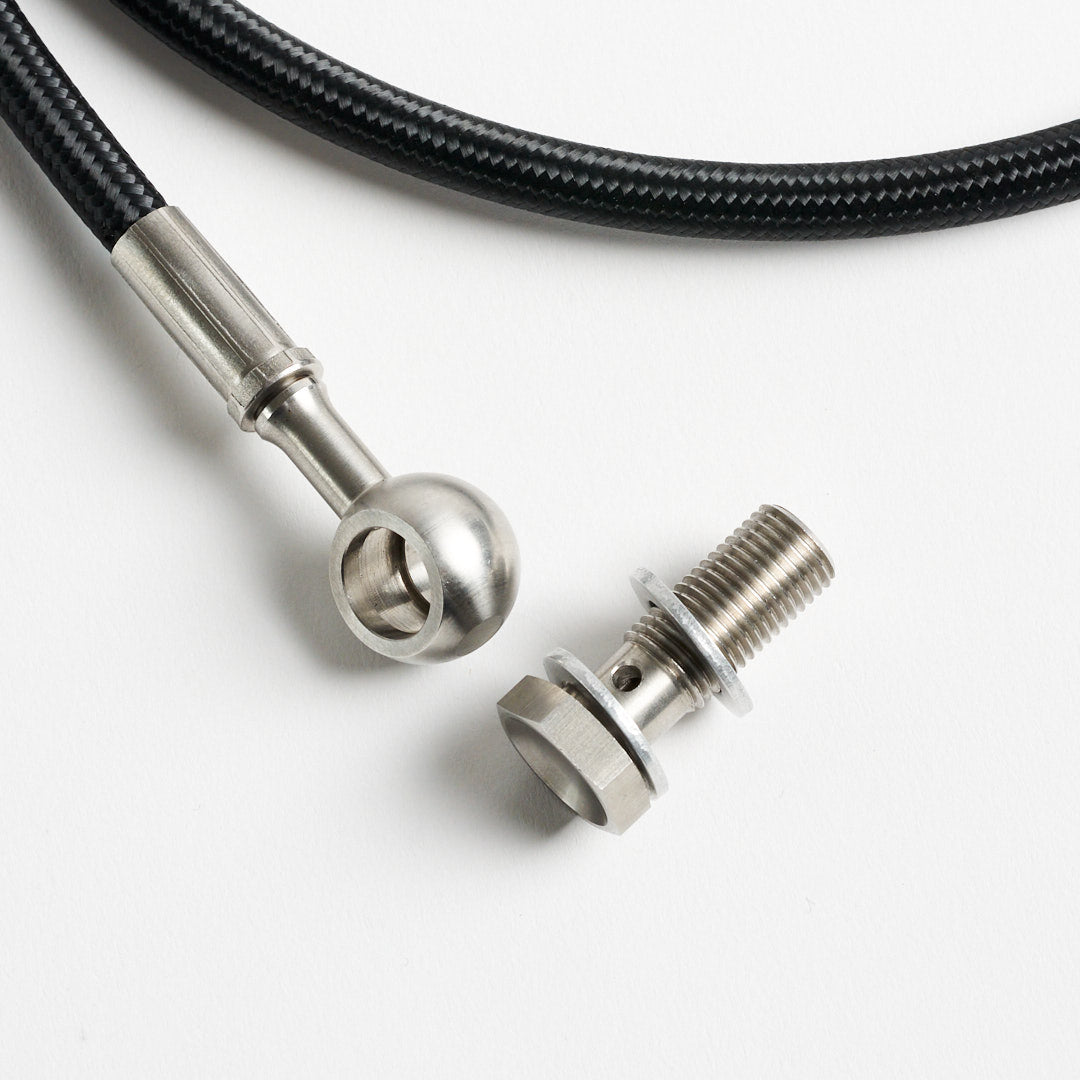

Our clutch line deletes the hard line to reduce potential leak points and provide a consistent clutch pedal feel. The PTFE hose is covered by braided stainless steel to resist swelling, and the braided nylon covering improves temperature control and also ensures that it looks at home in a classic engine bay. Connections are banjo and a swiveling -3AN fitting at the clutch master side to allow for correct clocking of the fitting.

TECHNICAL FEATURES:

-3 PTFE hose core covered by braided stainless steel for consistent clutch pedal response

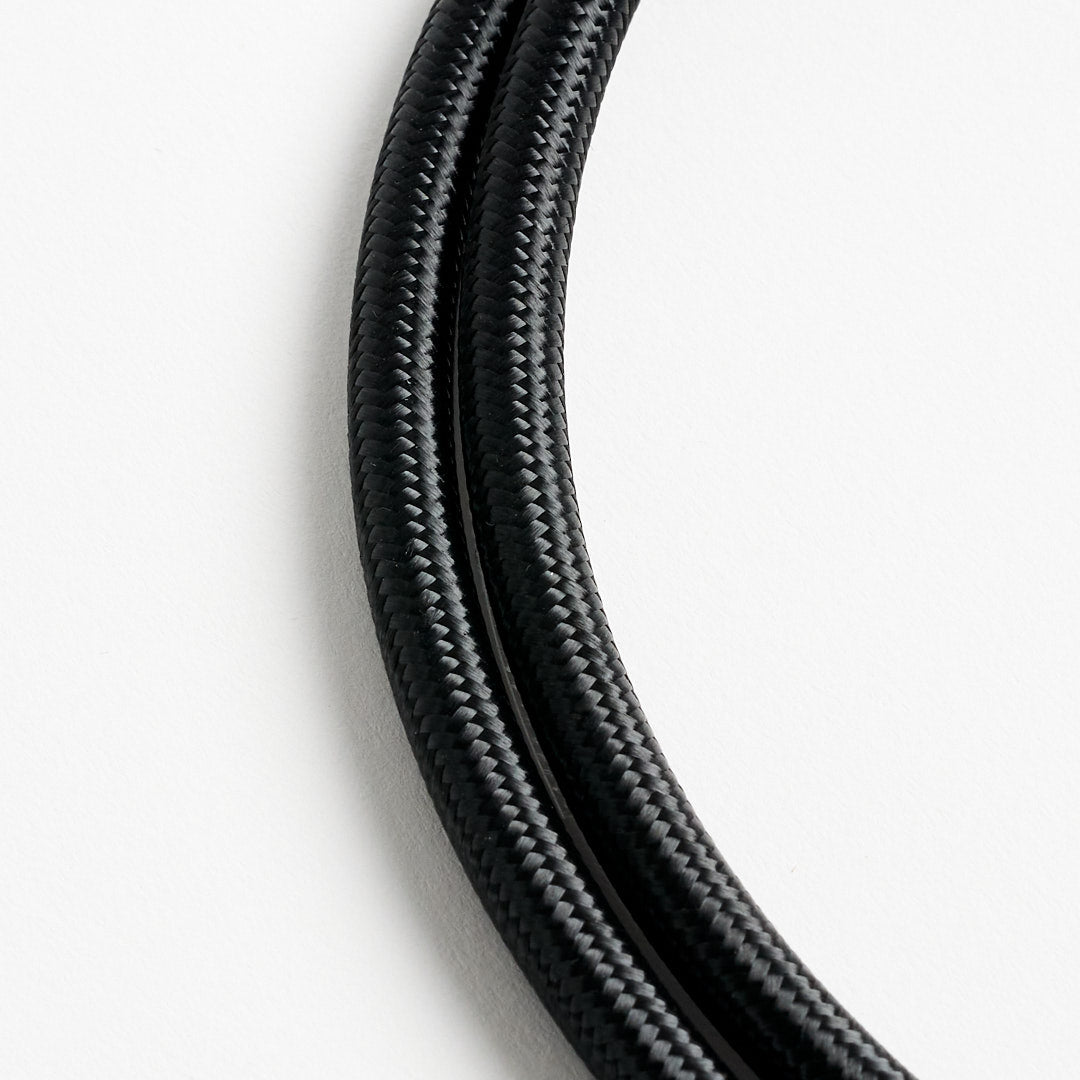

Braided nylon exterior for improved heat tolerance over typical pvc covering

304 stainless steel fittings

92 cm length fits left hand drive cars (see our RHD line here)

INSTALLATION INSTRUCTIONS:

1. Remove original clutch soft lines and hard line.
2. Install new clutch line with AN swivel fitting on clutch master side.
3. Torque banjo bolts to approximately 35 ft-lbs and AN fitting 10 ft-lbs. Use your best judgement for washer sealing.
4. Bleed clutch hydraulic system and ensure assembly is correctly adjusted.

-
